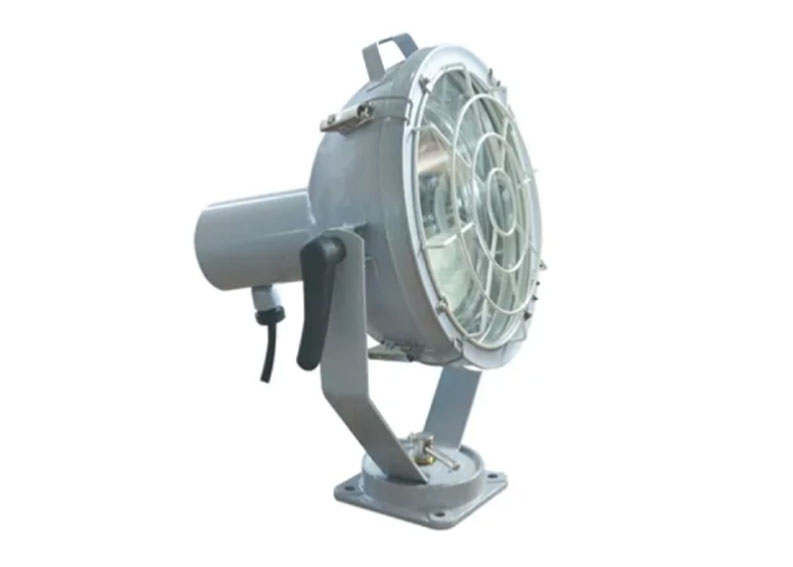

Marine Spot Light TG1-B

Applied for illumination of ship,port,dock,station and plaza etc.

Material

Steel

Voltage

110V/220V

Power

300W

Protection class

IP56

Lampholder

E40

Download

Product Filter

Navigation Signal Light Marine Fluorescent Light Marine Incandescent Light Flood Light Search Light Explosion Proof Light Marine Electrical Connectors Bulbs and Lamp LifeBuoy Light Accessories

Description

1. The lampshade is transparent toughened glass, the reflector is plated by chrome with high reflection efficiency.

2. Light body can rotate for +180 degree, horizontally, and pitching 120 degree.

Main Specification

Model	TG1-B
IMPA	792011-792013
Material	Steel
Voltage	110V/220V
Power	300W
Protection class	IP56
Lampholder	E40
Weight	8KG

Type	Voltage	Power	Lamp holder	Illuminant	Luminous flux	Material	Protection class	Cable outside diameter	Weight	Remark
TG1-A	DC110V AC220V	300W	E40	Incandescent bulb	4610	Steel	IP55	Φ10-Φ12	8kg	Without guard
TG1-B		300W			4610				8.97kg	With guard
TG2-A		500W			8300				9.7kg	Without guard
TG2-B		500W			8300				10.96kg	With guard
