Product Description
1. The signal lights have the seal structure, waterproof under the extreme enviroment.
2. The sheel is made of high-strength engineering plastic PA+GF, the lamp shade use injection of PC, lens hood of good quality
3. Special light bulb with average life up to 700hrs.
4. Working Temperature:-30℃-55℃
Main Specification
| Model | CXH1-3P | CXH2-3P | CXH3-3P | CXH4-3P | CXH6-3P |
| Standard | GB/T 3028-1995 | GB/T 3028-1995 | GB/T 3028-1995 | GB/T 3028-1995 | GB/T 3028-1995 |
| Temperature | -30℃-55℃ | -30℃-55℃ | -30℃-55℃ | -30℃-55℃ | -30℃-55℃ |
| Material | Shell PA+GF /Lamphsade PC | Shell PA+GF /Lamphsade PC | Shell PA+GF /Lamphsade PC | Shell PA+GF /Lamphsade PC | Shell PA+GF /Lamphsade PC |
| Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Power | 25W | 25W | 25W | 25W | 25W |
| Lampholder | B15D | B15D | B15D | B15D | B15D |
| Color | Green | Red | White | Transparent | White/Red/Green |
| Name | Type | Visibility | Lamp holder | Bulb | Protection class | Cable outside diameter | Color | Weight |

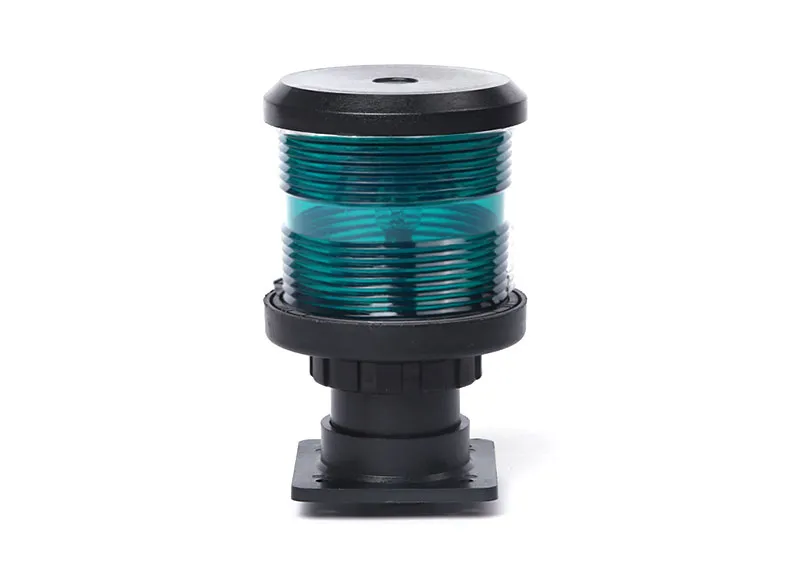

| Starboard light | CXH1-3P | 1n.m | B15d | 12V/25W 40cd 24V/25W 60cd |
IP56 | Φ10-Φ12 | Green | 0.48kg |

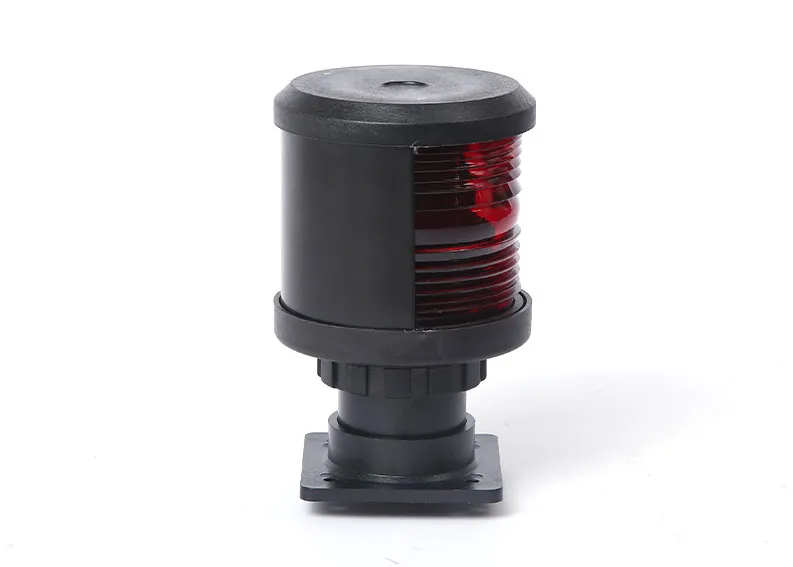

| Port light | CXH2-3P | 1n.m | Red | 0.48kg | ||||

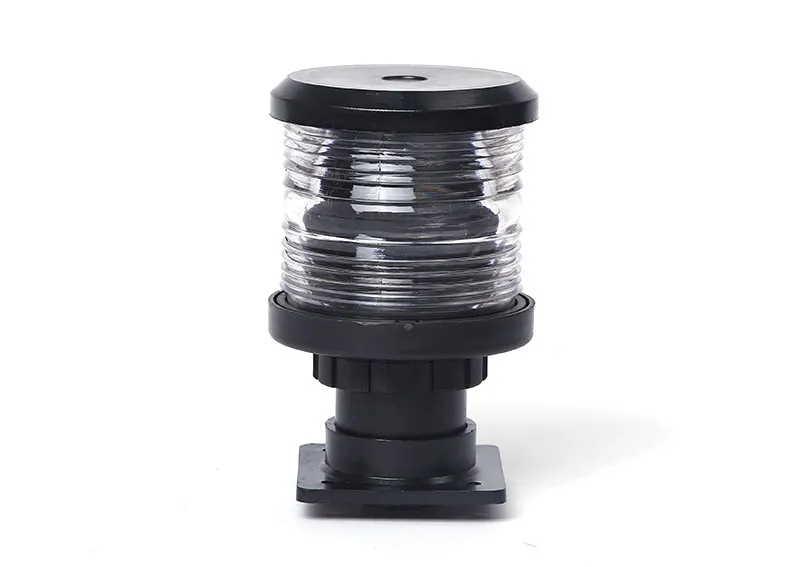

| Masthead light | CXH3-3P | 2n.m | Transparent | 0.45kg | ||||

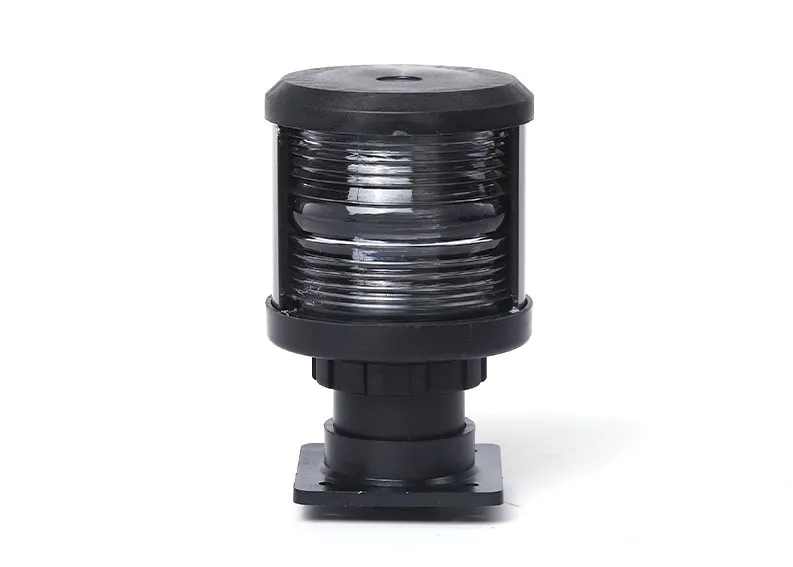

| Stern light | CXH4-3P | 2n.m | Transparent Yellow |
0.47kg | ||||

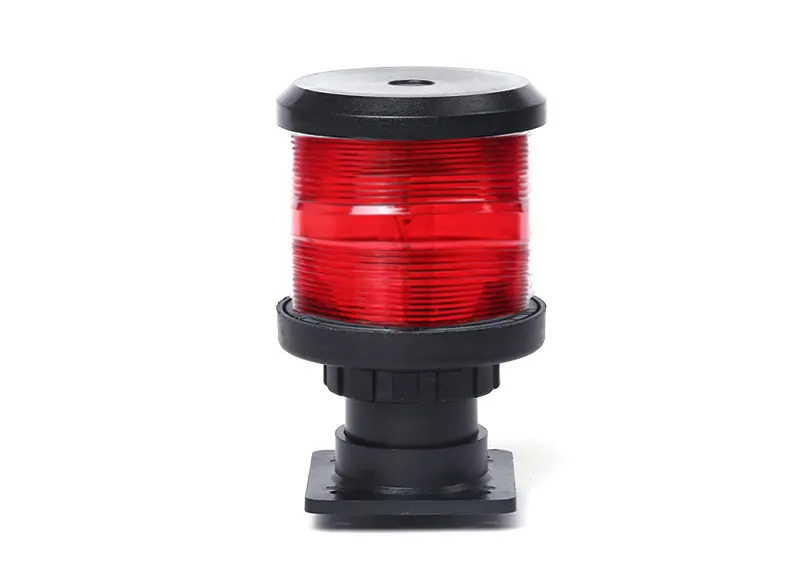

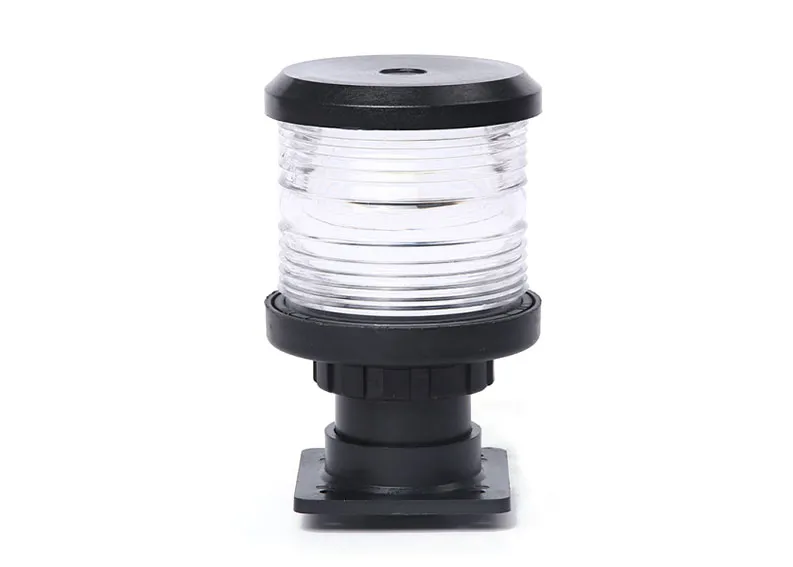

| All-round light | CXH6-3P | 2n.m | Red Green Transparent |
0.42kg |
