1. It is convenient to install and replace the bulb,and there are automatic aleak holes in the bottom.
2. The shell adopts good quality metal material steel of copper,the surface is painted the special mold-power,has the feature of corrosion resisting and shock resistance.
3. The lampshade is made of PC,has the feature of ultraviolet radiation resistance and does not discolor.
| Model | CXH1-3 | CXH2-3 | CXH3-3 | CXH4-3 | CXH6-3 |
| Standard | GB/T 3028-1995 | GB/T 3028-1995 | GB/T 3028-1995 | GB/T 3028-1995 | GB/T 3028-1995 |
| Temperature | -30℃-55℃ | -30℃-55℃ | -30℃-55℃ | -30℃-55℃ | -30℃-55℃ |
| Material | Steel /Lamphsade glass | Steel /Lamphsade glass | Steel /Lamphsade glass | Steel /Lamphsade glass | Steel /Lamphsade glass |
| Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Power | 25W | 25W | 25W | 25W | 25W |
| Lampholder | B15D | B15D | B15D | B15D | B15D |
| Color | Green | Red | Transparent | Transparent | Transparent/Red/Green |
| Name | Type | Visibility | Level arc | Bulb | Protection class | Cable outside diameter | Color | Weight |
| Starboard light | CXH1-3 | 1n.m | 112.5° | 12V 25W 24V 25W |
IP55 | Φ14 | Green | 0.80kg |

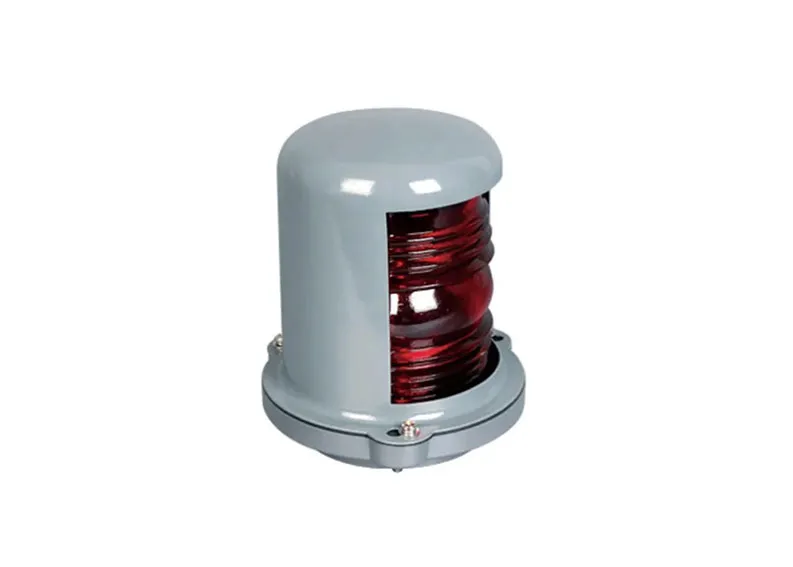

| Port light | CXH2-3 | 1n.m | 112.5° | Red | 0.79kg | |||

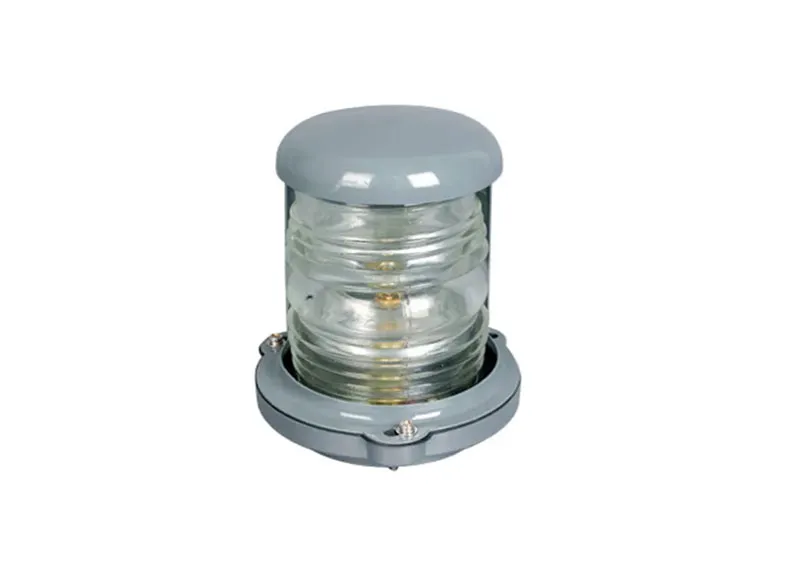

| Masthead light | CXH3-3 | 2n.m | 225° | Transparent | 0.73kg | |||

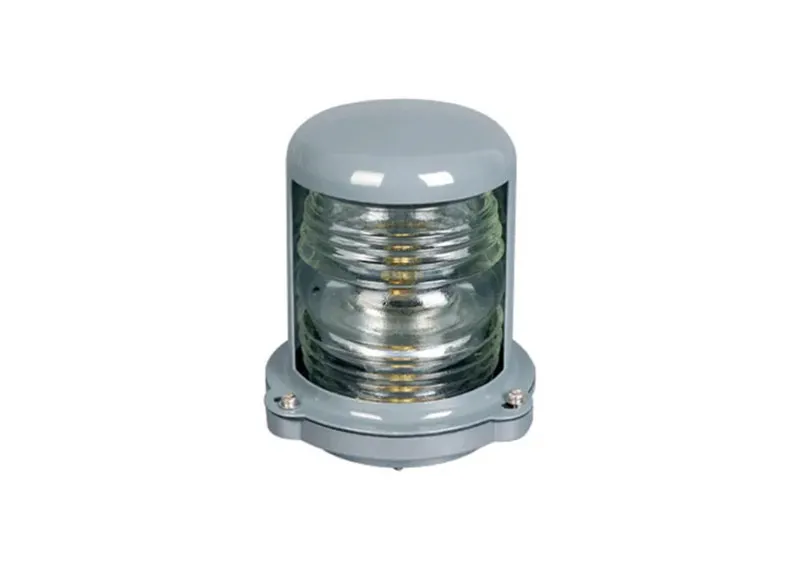

| Stern light | CXH4-3 | 2n.m | 135° | Transparent Yellow |
0.77kg | |||

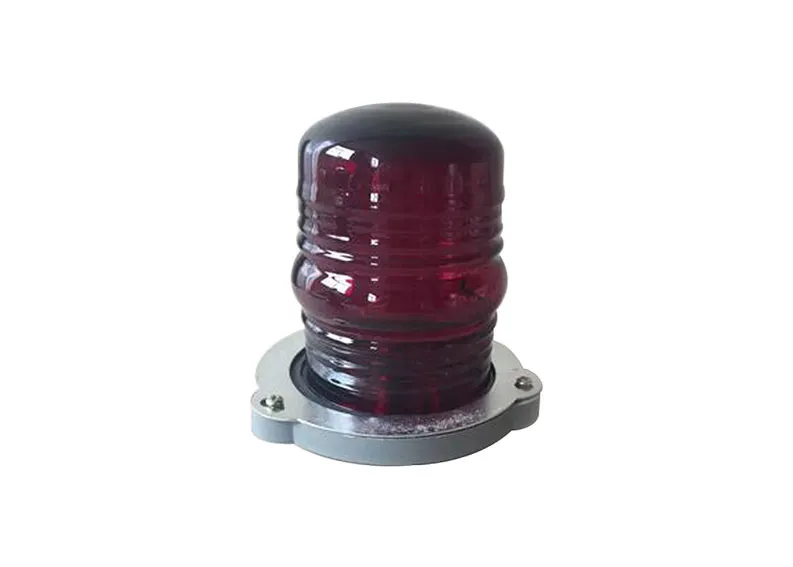

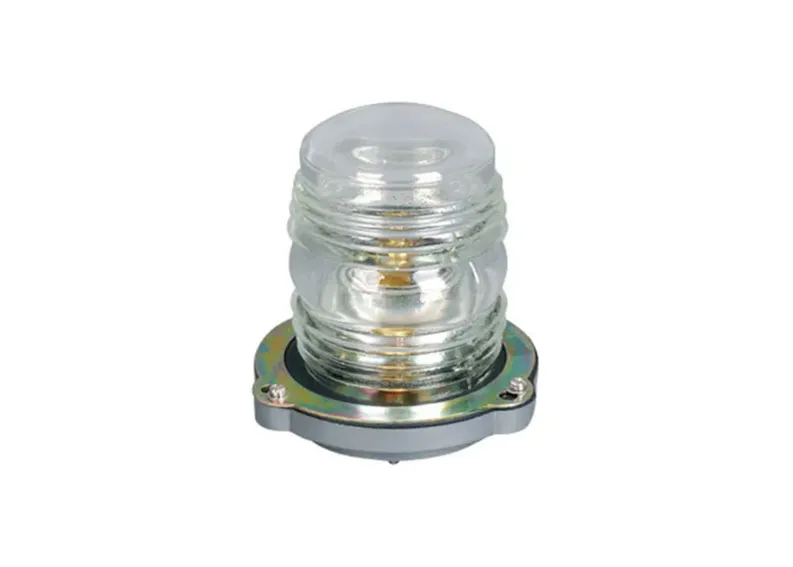

| All-round light | CXH6-3 | 2n.m | 360° | Red Green Transparent |
0.60kg |
